商品の詳細:
|
| 製品名: | 光ファイバーセンサー | センシング距離: | 90mm±10% |
|---|---|---|---|
| 確実な検出距離: | 0～72mm | 最小検出対象: | φ0.1 |
| 最小曲げ半径: | R25 | 証明: | CE RoHS |

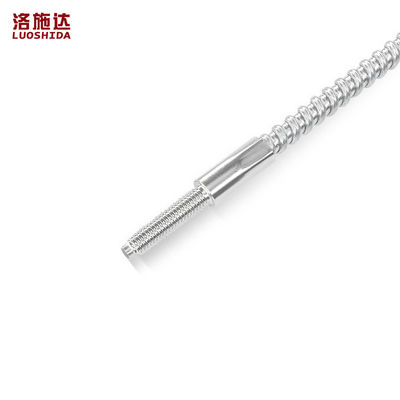

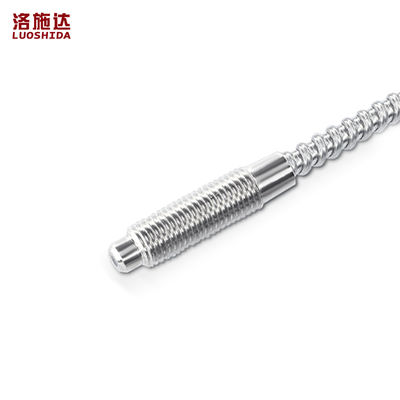

| M3 High temperature resistant optical fiber sensor diffuse reflection(350°℃) | |||||
| Size | M3*22.7 | ||||
| Sensing distance | 90mm±10% | ||||
| Reliable sensing distance | 0-72mm | ||||
| Standard detection object | 200*200mm White card | ||||
| Fiber opticcable length | 1M | 2M | |||
| Temperature resistance | -55℃…+350℃ | ||||
| Model without convex tube | RSG310S | RSG320S | |||
| Fiber materal | Glass | ||||
| Fiber core size | Fiber coreφ1.5*1 | ||||
| Fiber outer diameter | φ3.5 | ||||
| Minimum bending radius | R25 | ||||
| Minimum detection object | φ0.1 | ||||
| Fiber tube material | Stainless steel | ||||
| Weight | About 23.8g | About 41.5g | |||
| Certification | CE | ||||
