商品の詳細:
|
| 名前: | FDT-125MNO-TZ 光電ビームセンサ | センシング距離: | 5m |
|---|---|---|---|
| 標準的な検出の目的: | 直径12mmを超える不透明な物体 | 住宅資料: | パソコン |
| 動作電圧: | 10-30V DC | 負荷電流はありません: | <20ma> |
| マックス.ロード電流: | 30ma | 保護カテゴリ: | IP65 |

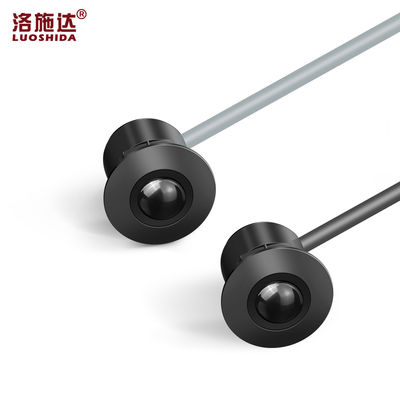

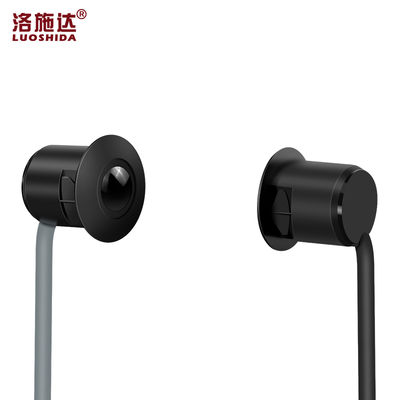

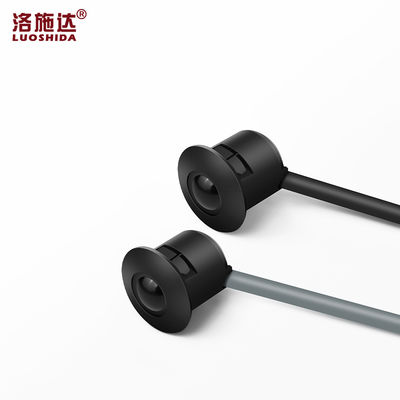

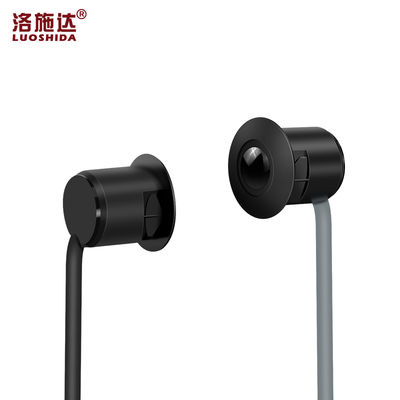

| FDT-125MNO-TZ Photoelectric beam sensor | ||||||
| Size | φ12.3*12.5mm(The max.diameter of the head isφ16mm) | |||||
| Sensing distance | 5M | |||||
| Standard detection object | Opaque objects with a diameter of more than 12mm | |||||
| Light source | 850 infrared light emitting diode(modulation) | |||||
| Housing material | PC | |||||
| With LED | Yes | |||||
| Model | NPN N.O. | FDT-125MNO-TZ | ||||
| NPN N.C. | 一 | |||||
| PNP N.O. | FDT-125MPO-TZ | |||||
| PNP N.C. | 一 | |||||
| NPN N.O./N.C. | 一 | |||||
| PNP N.O./N.C. | 一 | |||||
| Operating voltage | 10-30V DC | |||||
| No load current | <20mA | |||||
| Max.load current | 30mA | |||||
| Leakage current | <0.01mA | |||||
| Voltage drop | <2.0V | |||||
| Switching frequency | 100Hz | |||||
| Response time | 5ms | |||||
| Switching hysteresis | <10%(Sr) | |||||
| Repeat accuracy | <5%(Sr) | |||||
| Protection category | IP65 | |||||
| Operating temperature | 0℃…+55℃ | |||||
| Temperature drit | <10%(Sr) | |||||
| Short circuit protection | Yes | |||||
| Overload trip point | 40mA | |||||
| Connection | Φ3.3 2M PVC Cable, Transmitter:Φ3*0.14mm²; Receiver:3*0.14mm² |
|||||
| Weight | About 32.0g*2 | |||||
| Certification | CE RoHS | |||||
FAQ
Relevant information about the service :
Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.
Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
